DUOBLADE FX, SHORTCUT TO MAKE YOUR DESIGN GOODS

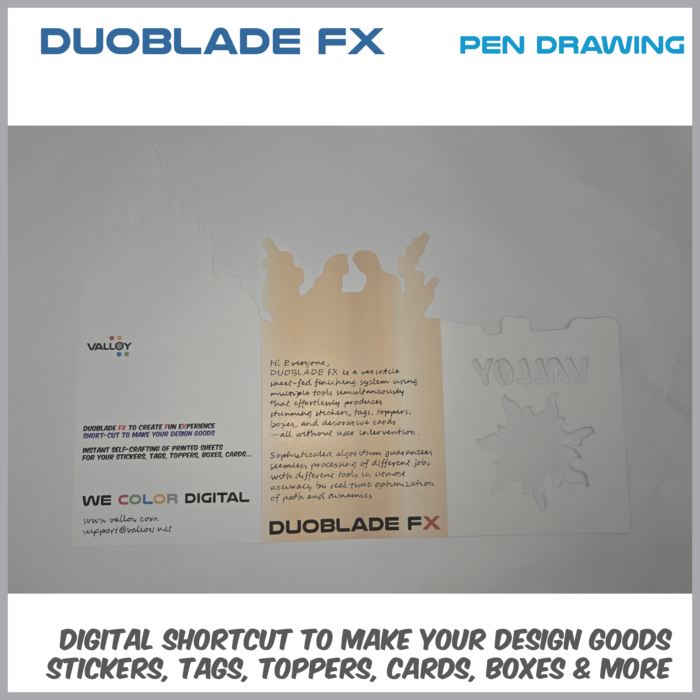

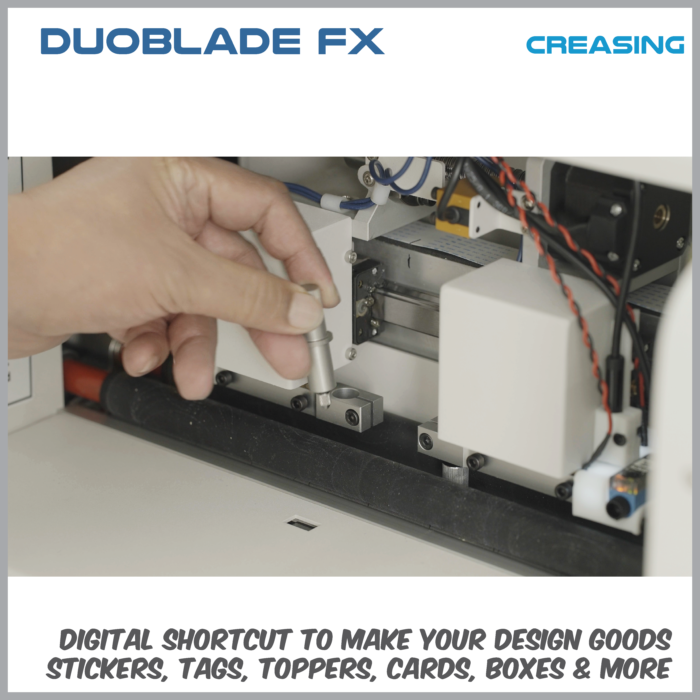

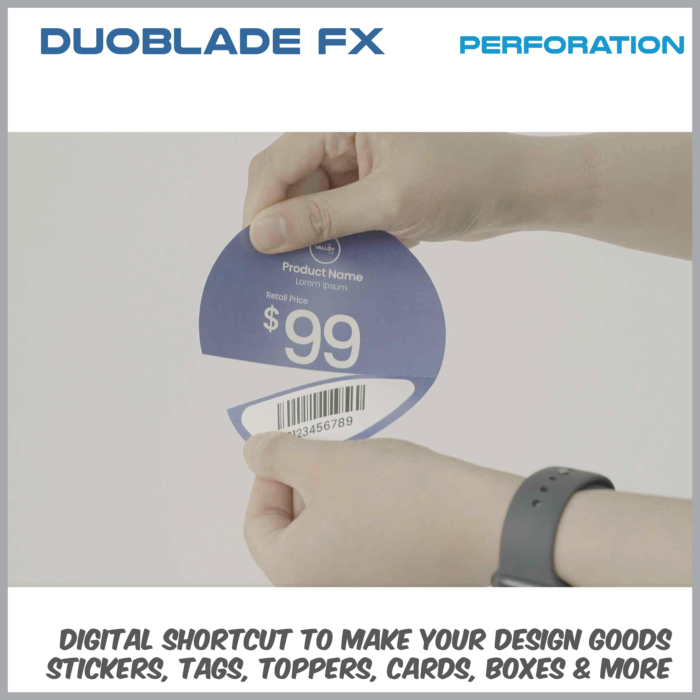

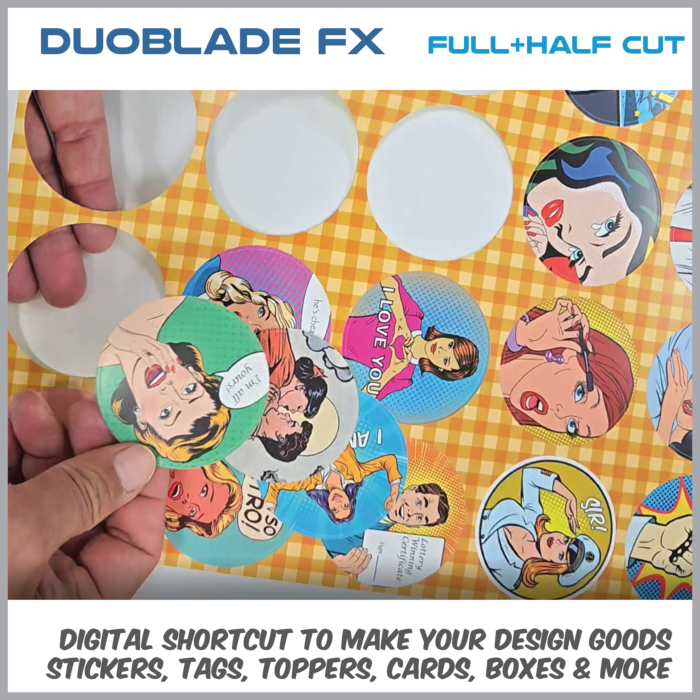

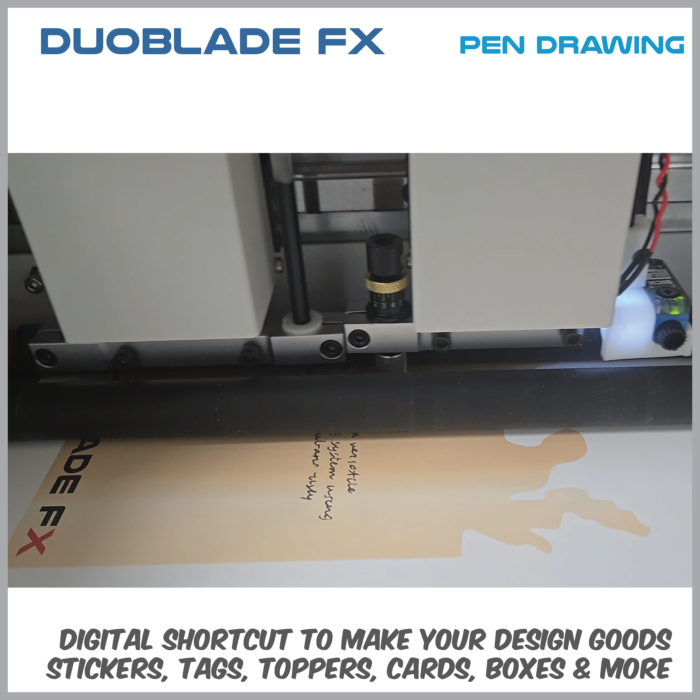

Full-cut, half-cut, creasing, pen drawing, perforation can be done by dual head system.

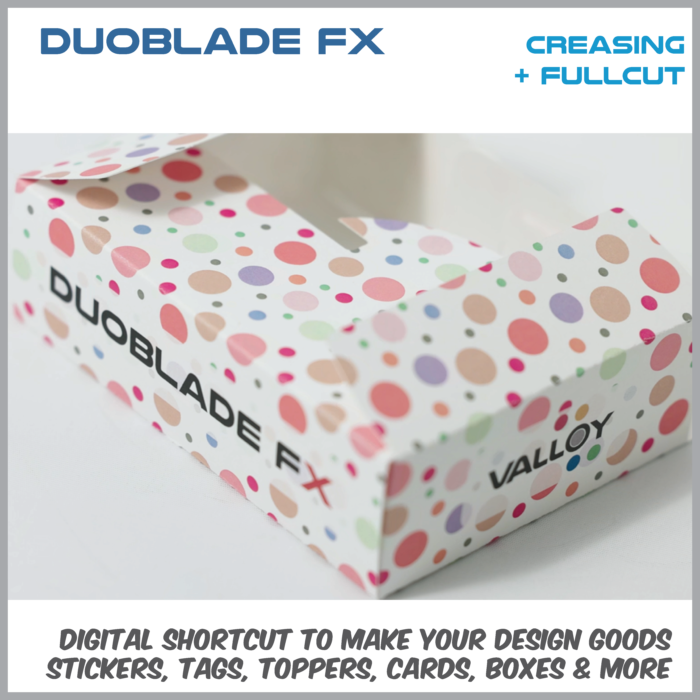

Instant production of stickers, tags, toppers, cards, boxes and much more…

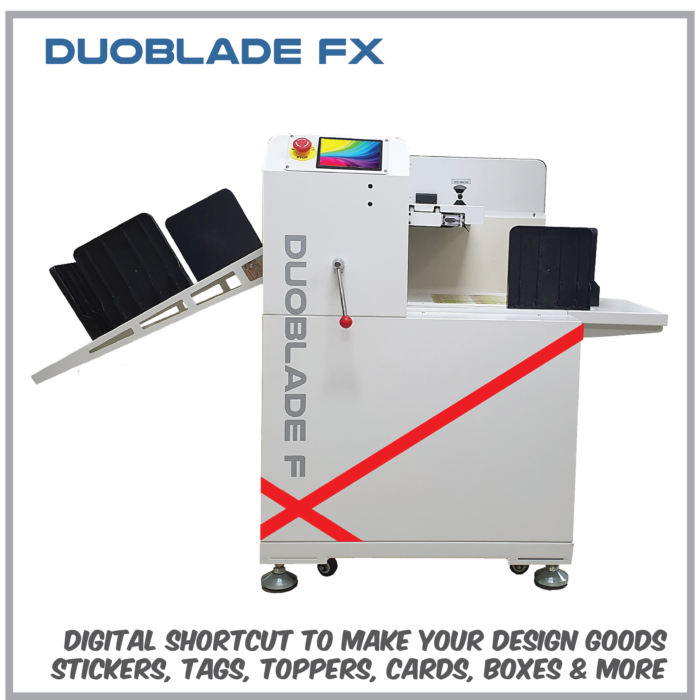

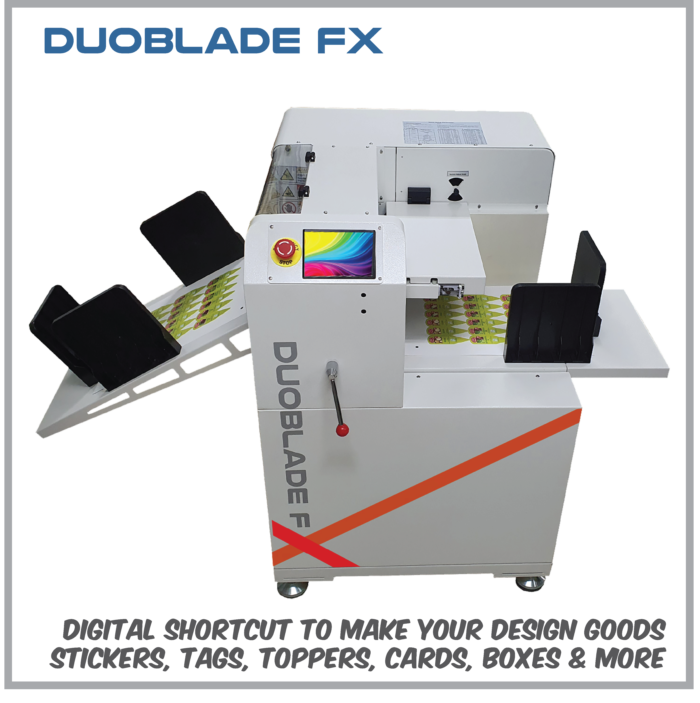

DUOBLADE FX is a unique auto sheet-fed digital knife cutter. Booting it up and feel dynamic motion in GUI with a sound.
Make your design to be printable with automatic inserting of marks and QR codes, then cutting files will be synchronized with the machine in real time, without any limitation. Just stack the printed sheets then it starts cutting and creasing automatically. It feeeds, senses marks, identify files, select tools and adjust settings by itself using 2 heads. Your stickers, tags, toppers and boxes will be instantly ready. with ultimate automation using CCD camera and visition system, controlled by sophisticated Perfect-Cut algorithm.
| Max. feeder capacity | 1,000 sheets (200gsm) |
|---|---|
| Media size | Min. 210mm x 148mm, Max.340mm x 630mm |
| Sticker cutting size | Min. 10mm x 10mm, Max. 340mm x 550mm |
| No. of cutting heads | 2 |
| Cutting Speed | Max. 3000mm/s(Acc. Max. 500mm/sec2), Super A3 150 – 600 Sheets/hour |
| Dimensions (WxLxH) | 82cm x 70.3cm x 102.6cm |
| Weight | 150kgs |
| Power | 100 – 240 VAC, 1000W |
| Tools | Full-cut, Half-cut, Creasing, Pen & Perforation |

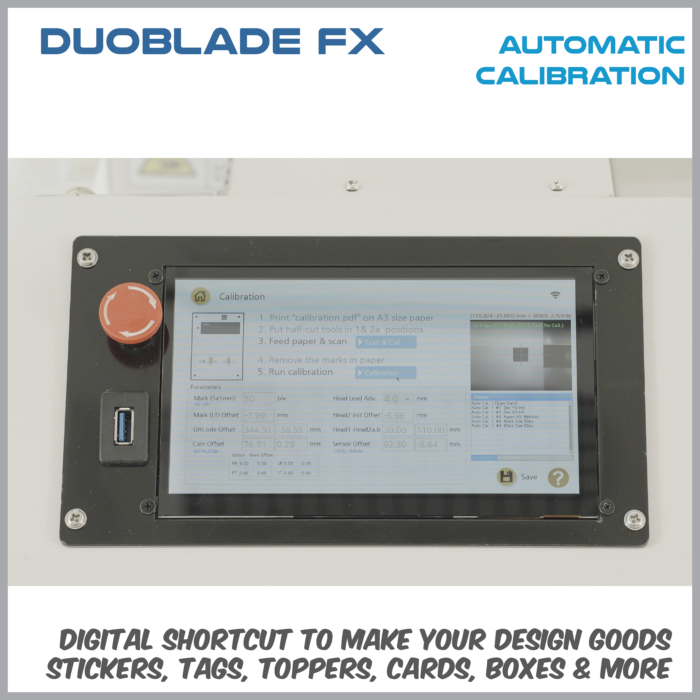

| Automation | QR driven automatic job change, Vision-driven automatic calibration |

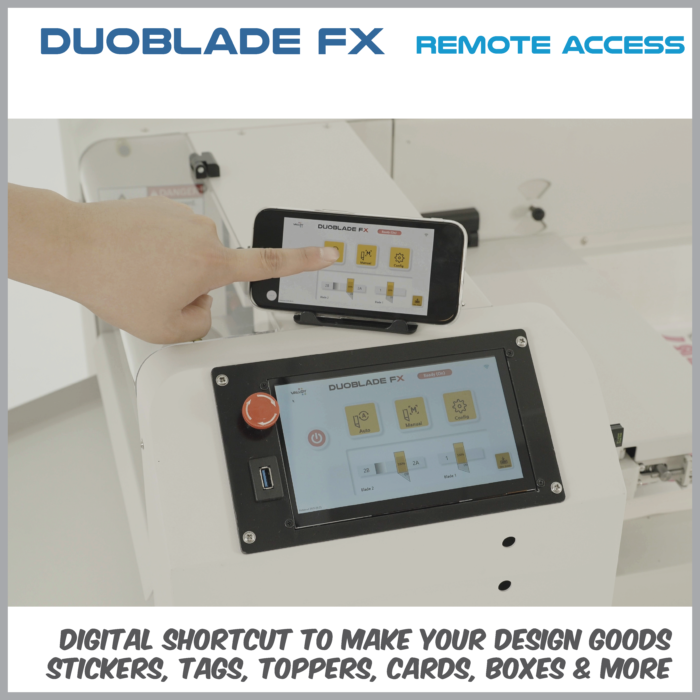

| Communication | Lan, WIFI, USB memory |
| Accuracy | 0.05mm |
| SOLUTIONS | LABEL & PACKAGE |
