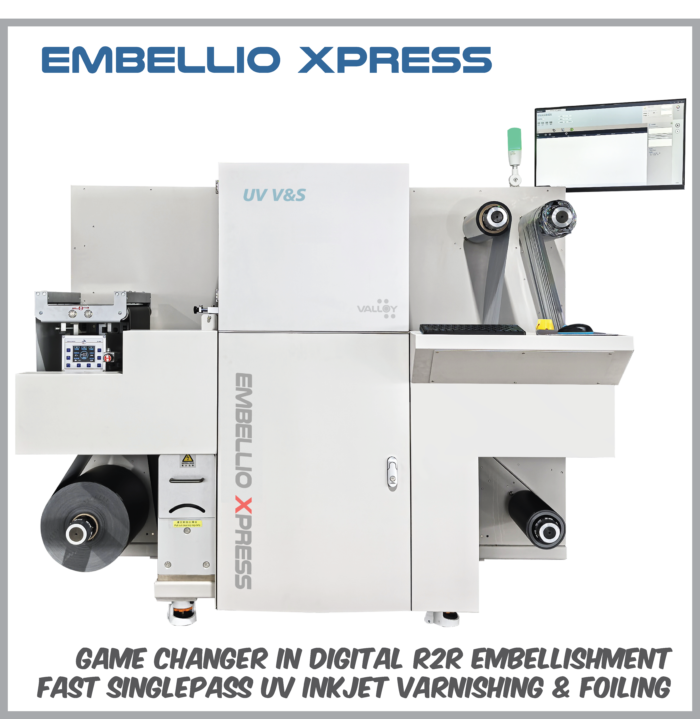

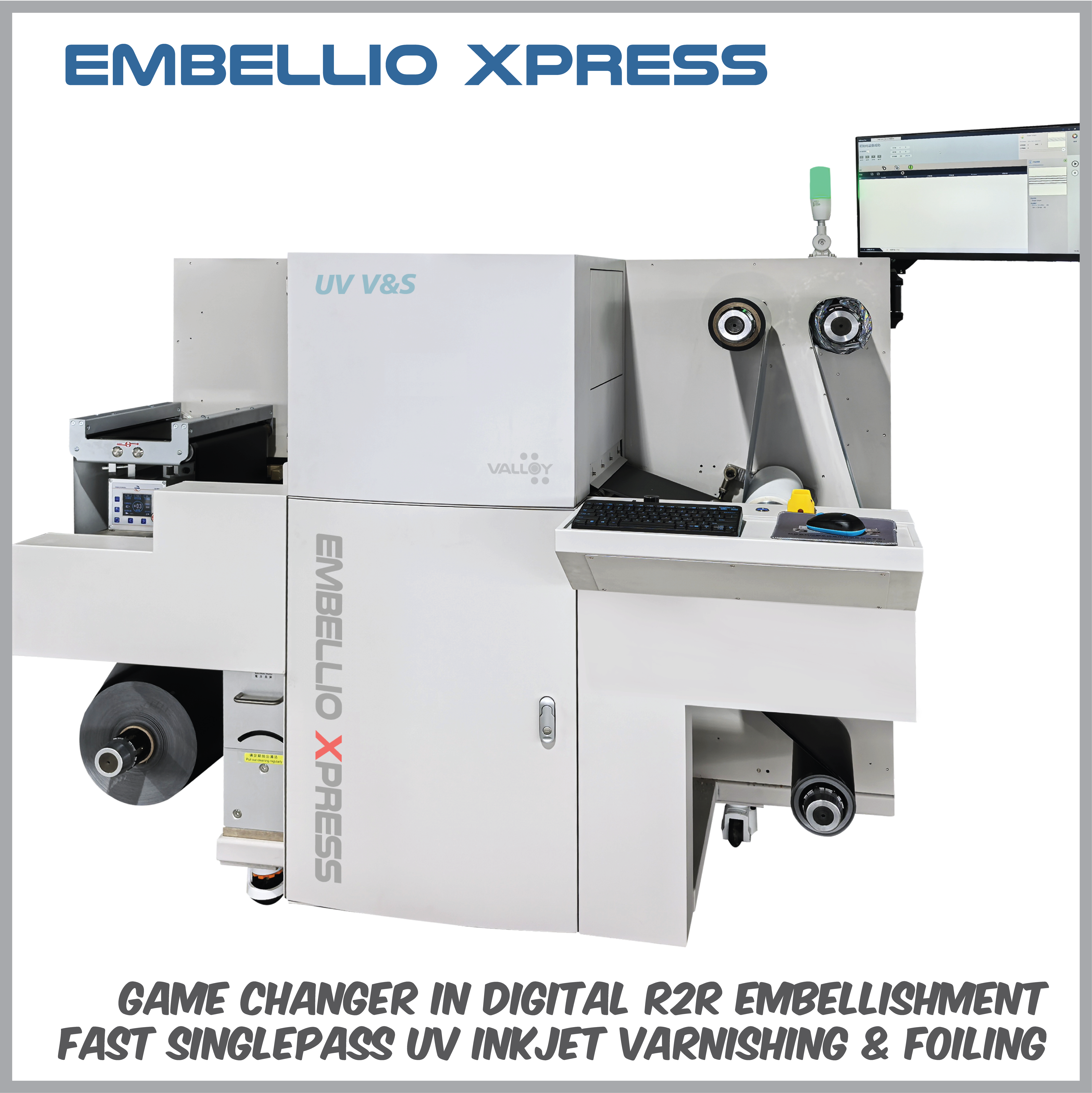

EMBELLIO XPRESS is UV singlepass inkjet printer for spot varnishing and foiling.
Digital Embellishment is a hot theme in digital printing but most of roll to roll solutions have been quite expensive and complicated. Valloy has developed innovative compact style 13″ roll to roll digital embellishment unit by using Xaar 2002 single pass heads for jetting of thick varnish ink in fast speed. Varnish layer can be printed in max. 70 micron thickness and printing speed can be up to max. 25m/min. Inline foiling system with gold or silver color is embedded as default.
| Printing technology | Single-pass UV inkjet (Xaar2002 head) |
|---|---|
| Media roll dieameter | 480mm (47.2 kgs) |
| Media width | 70~360mm |
| Printing area | 280mm (4-head) / 350mm (5-head, optional) |
| Media thickness | 60mic – 350mic |
| Printable materials | any |
| Pre-cut / Pre-printed material | Eye mark sensor |
| Resolution | 720 x 720 dpi, 720 x 1440 dpi, 720 x 2880 dpi |
| Ink layer thickness | 15 ~ 100 micron |
| Accuracy | ± 0.15mm for overprinting |
| Curing | UV LED lamp |
| Pretreatment | Corona |
| Dimensions (WxLxH) | 138cm x 180cm x 146cm |
| Weight | 750kgs |
| Power | 380 VAC, 3 phase, 20A |
| Consumables | Ink |
| Option | 5th head |
| SOLUTIONS | LABEL & PACKAGE |
