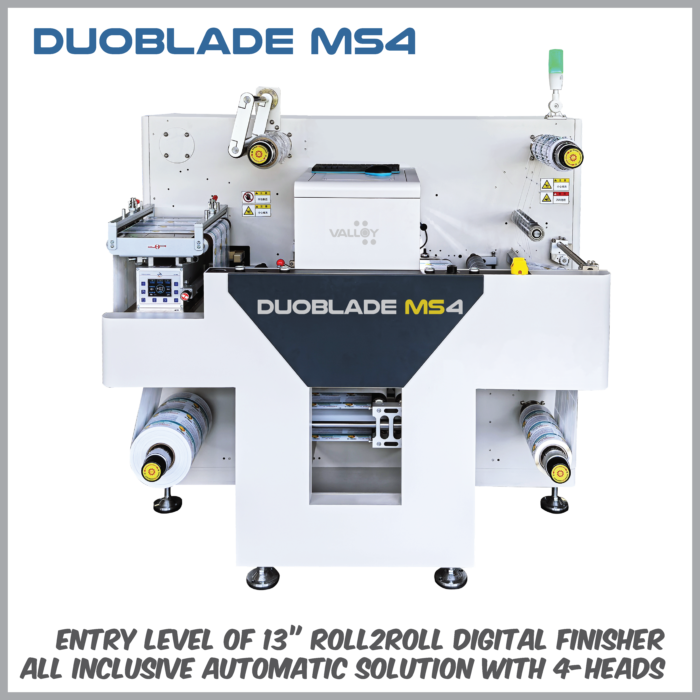

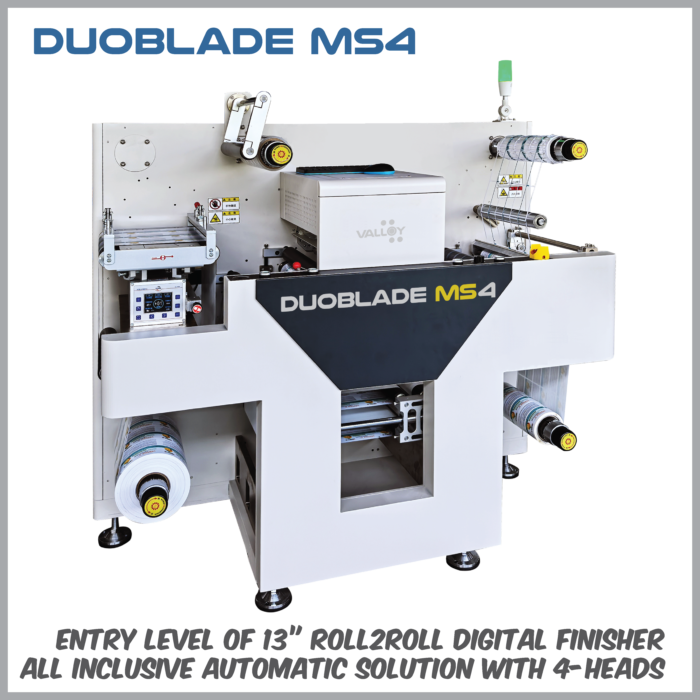

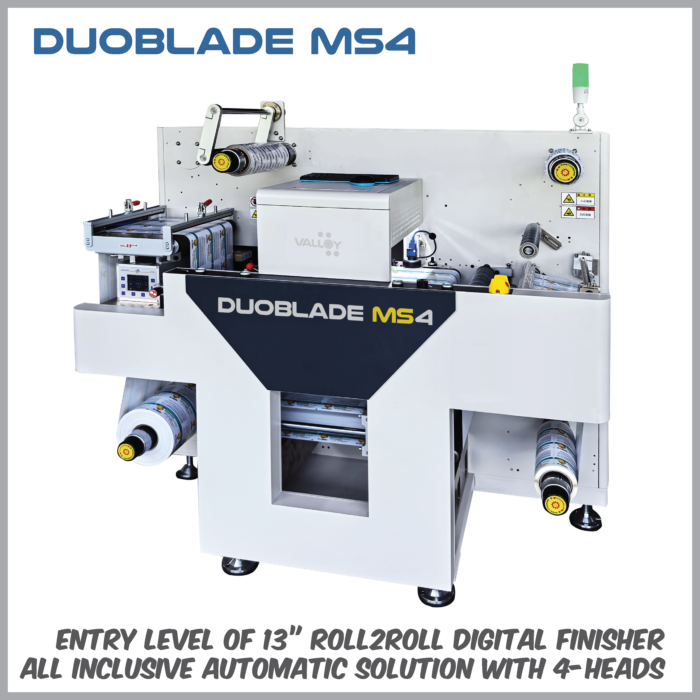

DUOBLADE MS4 is a successor of previous DUOBLADE WS model.
It is an easy to use entry level 13” roll to roll digital label finisher supporting automatic job change by CCD vision system.

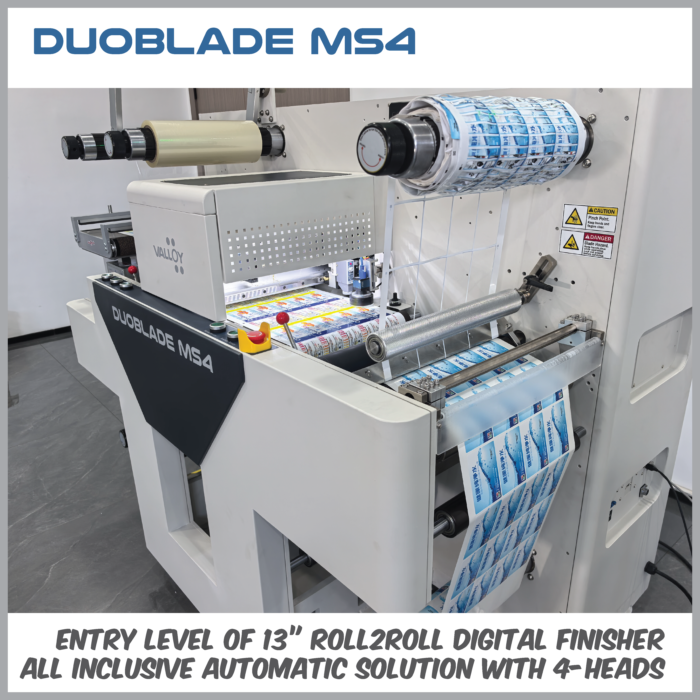

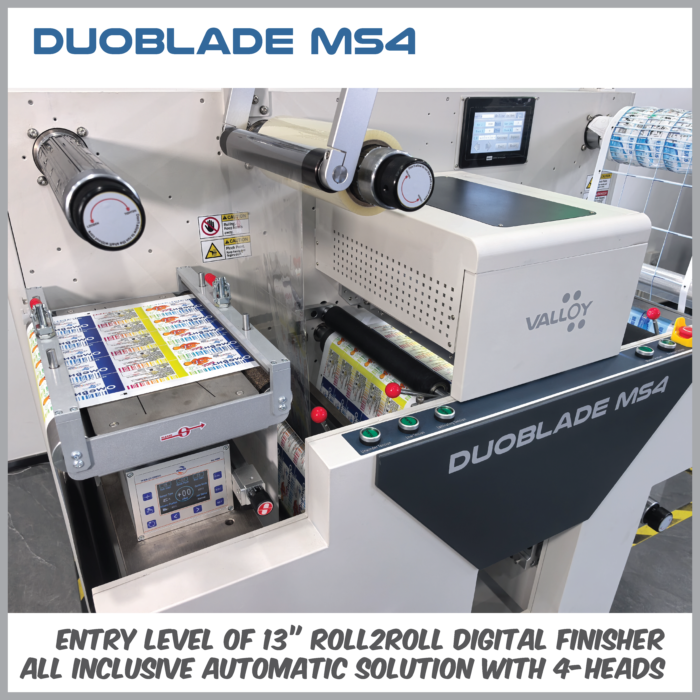

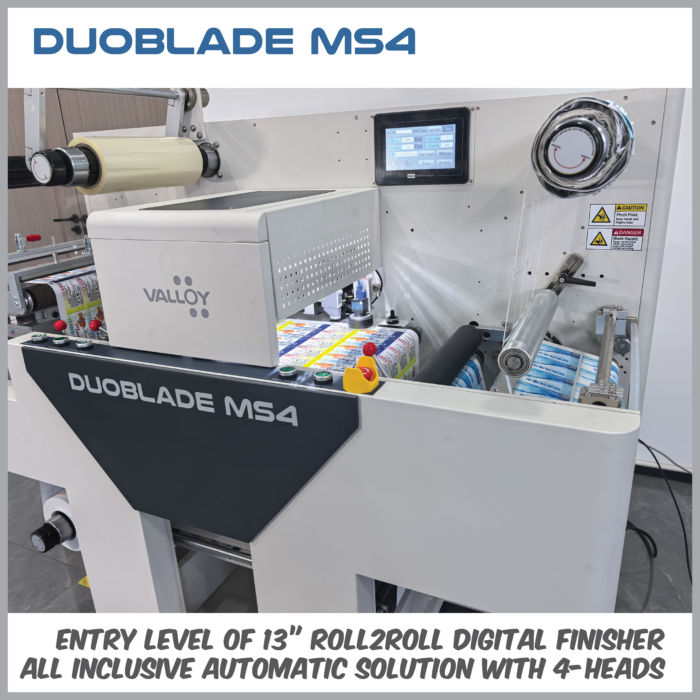

DUOBLADE MS4 is an easy to learn affordable 13″ digital roll label finisher. It has 4 cutting heads with CCD camera, enables automatic job change by loading QR dependent jobs and adjusting head distance automatically. Semi-rotary type slider controlls tension and buffer in scilent operation without using air compresser. Strong and thick lead screws drive X and Y movement without backlash in fast way. It can cut up to 500mm length labels but multi-cut feature enables 4m long label cutting. Supporting PDF, PLT and DXF files.
| No. of cutting heads | 4 |
|---|---|
| Cutting Speed | 8m/min (15cm length labels) |
| Dimensions (WxLxH) | 1540mm x 1005mm x 1636cm |
| Weight | 980kgs |
| Power | 100 – 240 VAC, 2000W |
| Automation | QR driven automatic job change by CCD camera |
| Max. roll diameter | 500mm |
| Media width | 40~350mm |
| Min. gap between heads | 42mm |
| Laminating roll diameter | Max. 300mm |
| Waste roll diameter | Max. 460mm |
| Slitting system | Dragging knife, 5 units default, max. 15 units, min. 10mm gap |

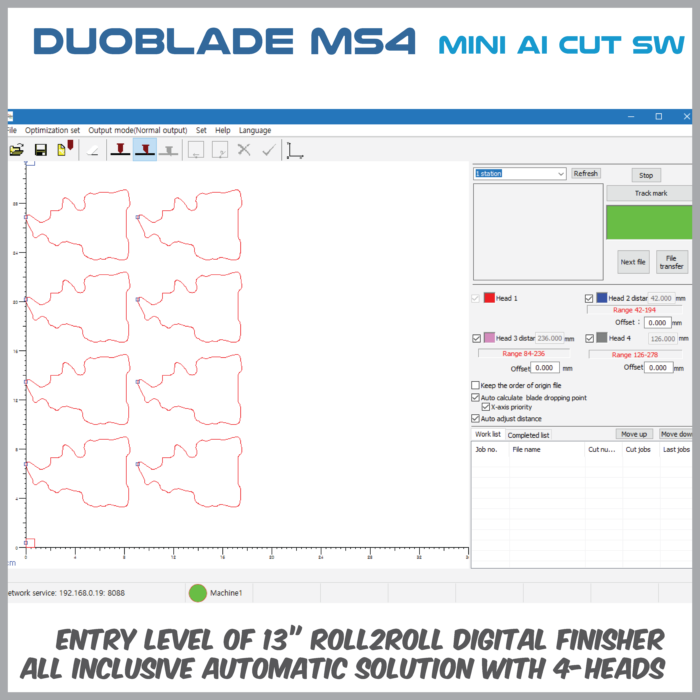

| Included | Laminator, Waste removal, Job counter, Slitter, Web guide, CCD camera, Automatic tension control, Mini-AI cut S/W |
| Options | Chop-in sheet cutter, Laminating backliner rewinder, Heated waste strip roller, Auto-stop by detecting labels on matrix, EPSON/MEMJET inline connection module |
